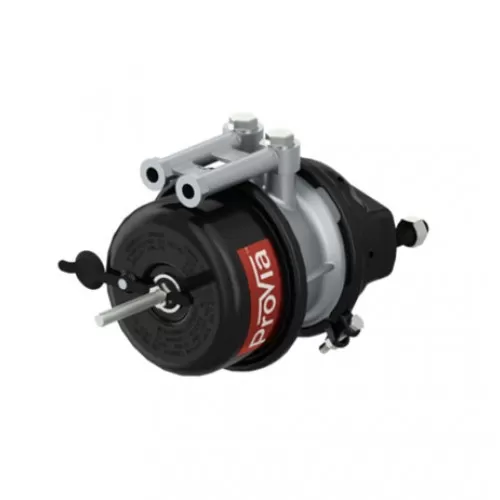

Double-Diaphragm Actuator Disc

16/24
ProVia Warranty - 1 year
Bolt lengths - 42.0 mm
Bolt threads - M16 x 1.5
Clevis pins - 12.5 mm
Distance between bolts - 120.6 mm
Max. operating pressure - 10.5/8.5 bar
Port Angle - 90°
Port thread 11 - M16 x 1.5
Port thread 12 - M16 x 1.5
Push-rod length - 235 mm
Push-rod thread - Ball R8
Release pressure - 5.5 bar
Return-spring force - 100 N
Stroke - 57.0 mm
Temperature range -40°C to +80°C
